Elena ZMAX

1,900.00
+
Write a review
PlasticHub
A small company in Barcelona specializing in recycling hardware and software developme...

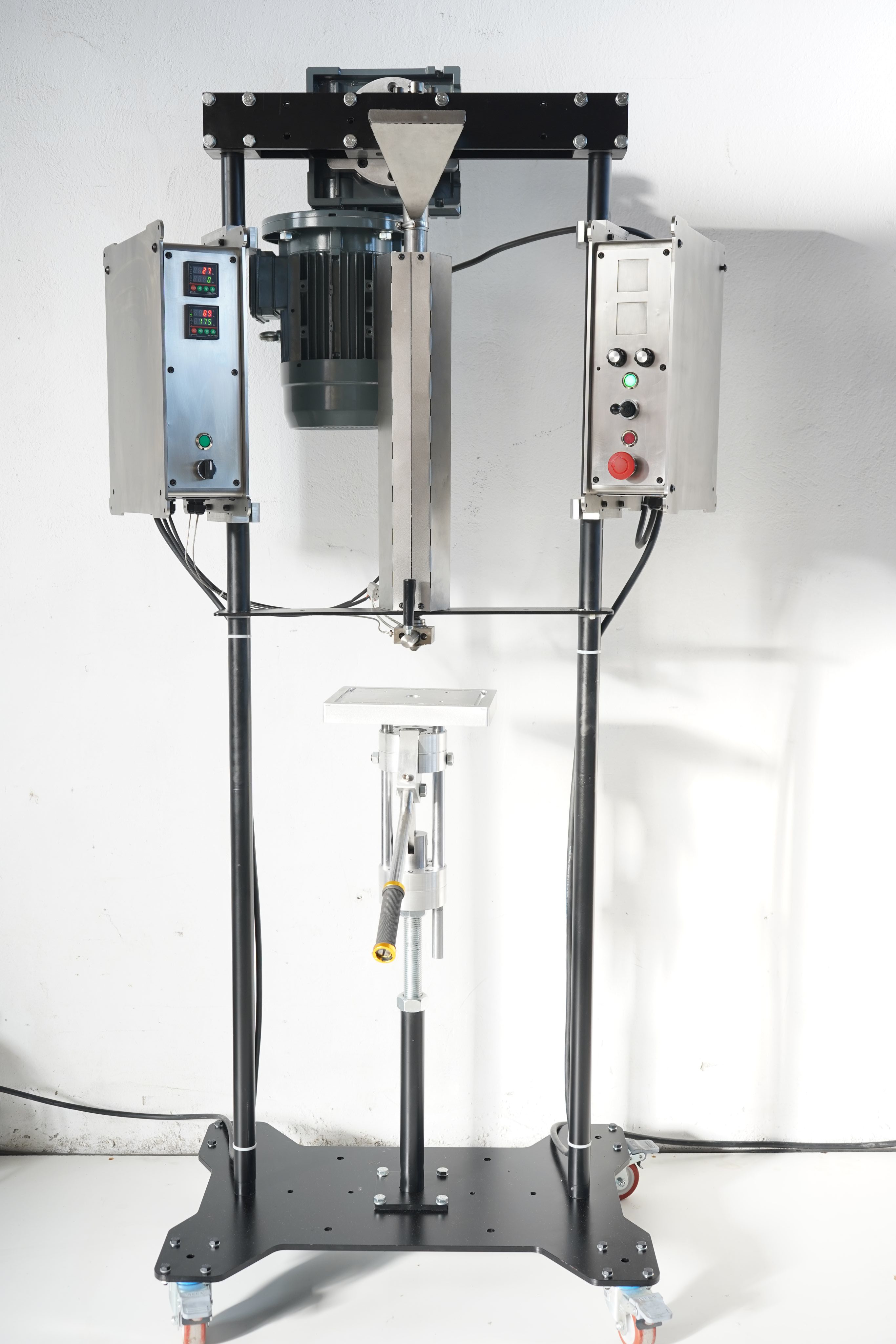

Arbor injection machine

Features

  • Shutoff valve
  • Gearlock


Please always contact us by EMail : sales@plastic-hub.com


Specification

Version 1.1
Variant ZMAX
Weight 45 Kg
Package Dimensions 130 x 300 x 500 cm
Frame Height 1.2m
Usable Barrel Length 65cm
Voltage 220V
Shot volume 400 Gramm
Cartridge Heaters 6x 300 Watt
Barrel Inner Diameter 30mm
Barrel Outer Diameter 40mm
Nozzle Diameter 6-8mm
Valve – Heaters 2x10mm – 50W
Maximum Temperature 300 Degree Celsius
Input Flake Size Small - Medium
License CERN Open Source Hardware License

Authors

Components

Resources

  • Download

  • 3D Preview

  • Source Code Repository

    Shipping

    Shipping fees within Europe : 130 Euro
    Estimated shipping fees outside of Europe : 900 Euro

    Payment Terms

    Industrial machines : 100% of the total cost of the machine(s) to be paid at the moment of the order.
    Machines manufactured in-house : 70% of the total cost of the machine(s) to be paid at the moment of the order. The 30% left + transport fees to be paid at reception of tracking number of the shipping (no machine leaves the workshop without full payment).

70% of the total cost of the machine(s) to be paid at the moment of the order. The 30% left + transport fees to be paid at reception of tracking number of the shipping (no machine leaves the workshop without full payment).


No reviews found
