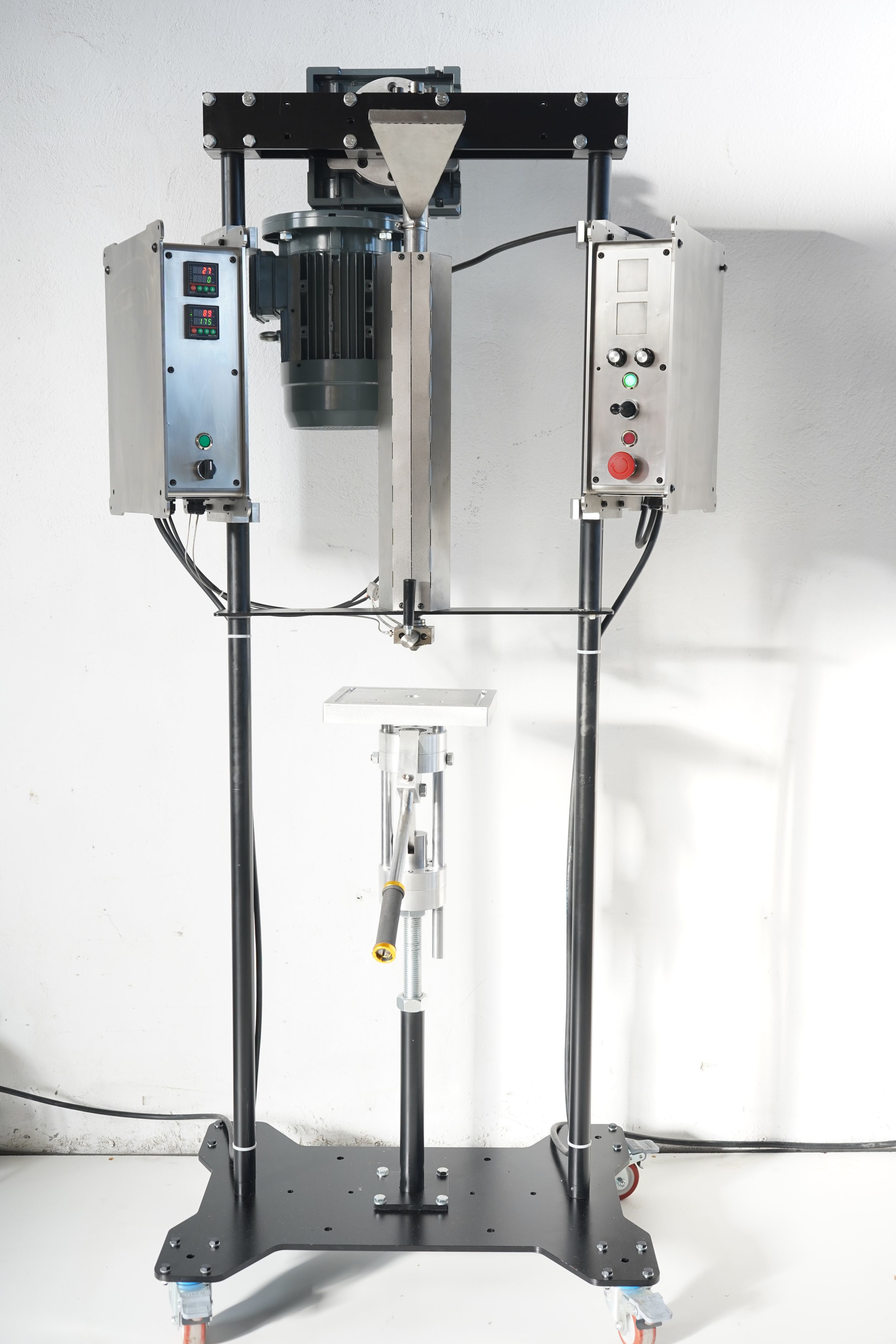

Arbor injection machine 'Elena - ZMAX - Motor'

This design resembles 5 years of low-tech injection machines.

Features / Details

  • Heated shutoff valve
  • Safe overall handling
  • Comfortable working height
  • 3T quick mould clamping mechanism
  • strong 3kW motor, about 3 times more injection power
  • Fast injection speed (up to 10 times compared to analog injectors)
  • motor overload detection

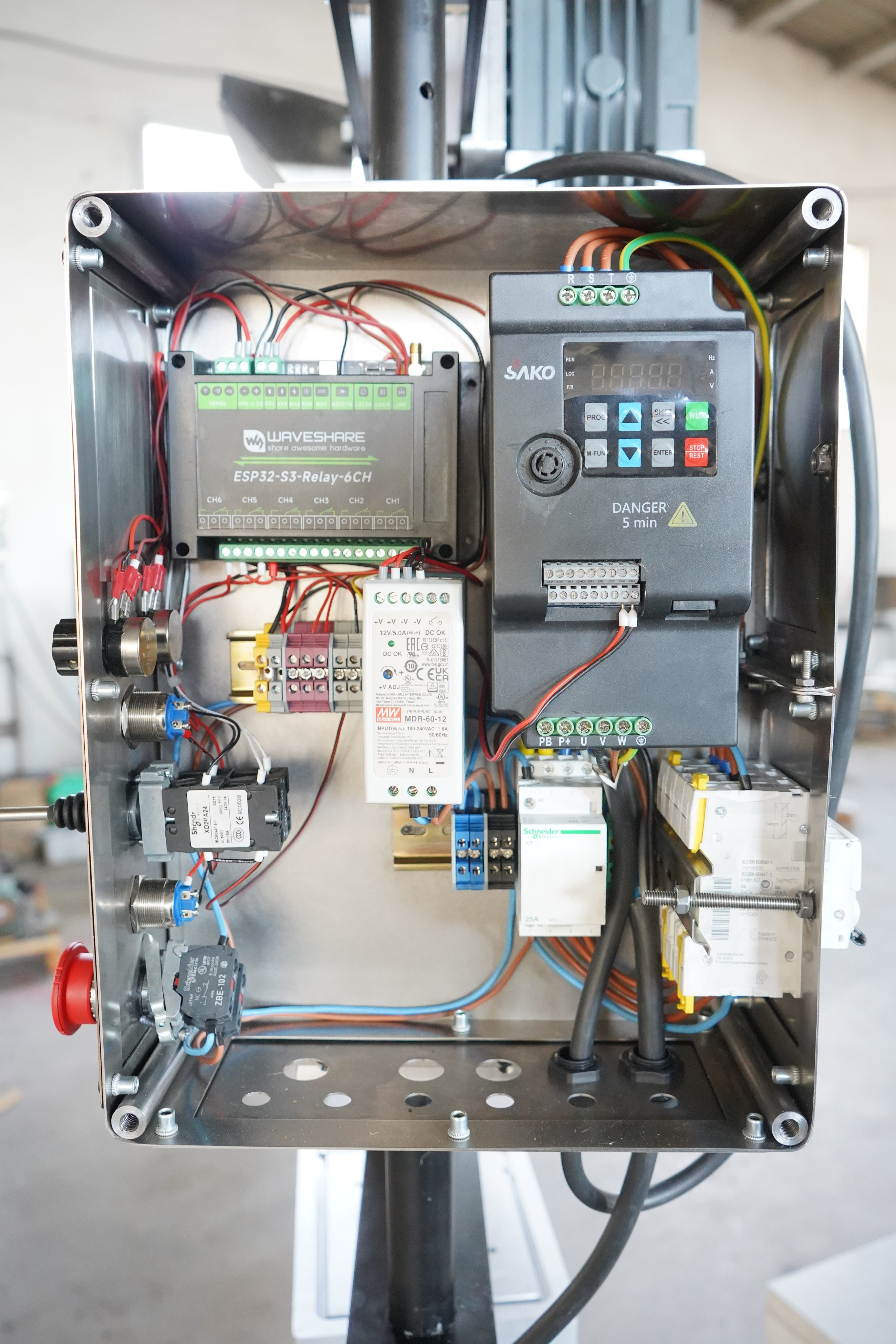

  • Arduino based controller (Controllino - Mini)
  • Easy to assemble
  • Predictable and precise shots, up to 500g
  • Firmware, CAD & Cam Opensource
  • Flexible design, more components can be found in our library (adapters for extruders)


Please always contact us by EMail : sales@plastic-hub.com


Specification

Version 1.0
Variant ZMAX-Motor
Weight 75 Kg
Package Dimensions 130 x 300 x 500 cm
Frame Height 1.2 – 1.7 m
Usable Barrel Length 65cm
Voltage 220V
Shot volume 400 Gramm
Heatbands 6x 300 Watt
Barrel Inner Diameter 30mm
Barrel Outer Diameter 40mm
Nozzle Diameter 6-8mm
Valve – Heaters 2x10mm – 50W
Maximum Temperature 300 Degree Celsius
Input Flake Size Small - Medium
Motor Power 3 kW
Gearbox 1:30
Gear – Axle 22 Teeth
License CERN Open Source Hardware License

Authors

Components

Resources

Extra Resources

  • Forum Howto

  • Library Entry

    Shipping

    Shipping fees within Europe : 250 Euro
    Estimated shipping fees outside of Europe : 900 Euro

    Payment Terms

    Industrial machines : 100% of the total cost of the machine(s) to be paid at the moment of the order.
    Machines manufactured in-house

70% of the total cost of the machine(s) to be paid at the moment of the order. The 30% left + transport fees to be paid at reception of tracking number of the shipping (no machine leaves the workshop without full payment).
